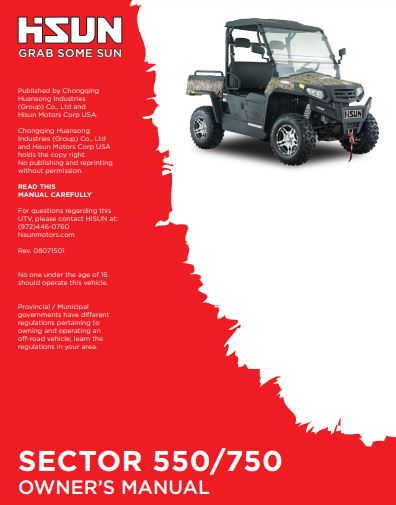

HiSUN Sector 750 Owner's Manual
-
Similar Topics
-
By Brent C
Hi all, I own two Axis UTV's. Last year I purchased a 2022 Axis 500. I had a mechanical issue with the shifting forks after only 50 miles. I contacted Axis/Hisun warranty dept. That were very helpful and willing to send out a representative to see if it was a warranty issue that fell under coverage. Since I live in an area that does not have authorized repair facility within 300 miles. A really nice guy drove all the way from West Virginia which was 4 hours away. He determined that the console would not stay seated in position and while driving it, the console would jump forward and knock it into the wrong gear causing the shift forks to become bent. It was then picked up a few weeks latter to be repaired in Richmond, Virginia. It should arrive home soon.
Now to my question. After the 2022 Axis 500 was taken for repairs, I bought the 2024 550 Axis. I bought the first one to take my son who is disabled from an extremely rare disorder that requires daily care to get out of the house. There are two things that give him joy, music and going for rides. That is why I purchased the first one, However because it had bucket seats and the engine was between the two and was too loud even though I deaden the sound and put a quiet muffler on it.
I then decided to purchase the Axis 550 for the great updated features and the bench seat, I will be buying the complete enclosure ad on's offered by Hisun. Since it does not come with a heater (Axis 750 does) I was wondering if anyone knows what heater is part of the 750 edition. There was a photo that showed a Firestorm brand, however I can not find what variation it is. If anyone knows what a Inferno heater would be correct for the Axis 550. I would like to install it this Winter to take Justin riding on the farm. Any help would be greatly appreciated. Brent
-
By JDawg
Was using the machine all day to haul wood...no issues until the end...
When I try to start it, the dash lights come on but starter does not...seems like no power to the starter.
It is in park, but when I put the brake on to start, it registers N.
Won't start in neutral either...
Tried rocking it, did not help...
Help...
-
By vachi
hi everyone i have this 2021 Hisun forge 250 that won't start. no spark no fuel. when i turn the key on i dont hear the relays click or fuel pump come on. it does have power but the relay doesnt ground the pump or the ignition coil. dont know if there are any safety switches on this model or not. it does crank and all the accessories work. i hot wired the pump and it does work. i found a wiring diagram but it's very hard to figure out and was hoping someone has seen this before. all fuses are good. thanks in advance.
-
By Gorj
I have had my E1 since late last summer and I have always noticed that the parking brake was weak or non existent. About a month or so after I purchased it I mentioned to the dealer that the parking brake did not function well. What I was expecting from the dealer, ' well bring it in and we will correct the issue.' What I got was the typical dealer response, "it may just need to be adjusted." No shit! Well I finally decided to adjust it. A very simple process need only two 10mm wrenches. Open the bed, remove the pin holding the bed to the strut and move the bad out of the way. Right in front of the electric motor is a brake disk. That is the parking brake. It has a small set of brake pads that are actuated by a lever attached to parking brake cable. There are two 10 mm nuts on the shaft to moves the pads. Release the inner nut and hold it in place while screwing in the outer nut - that is really a bolt. After screwing it in about one turn, tighten the other nut. Check the parking brake. If it is holding when activated, then you are good, but if not, then you may have to turn the bolt another turn. Do not turn to far or you will lock it up.
-
By Robby
Hello, I have a 2013 500 utv hisun. Was running ok and cut out while parked. Bike will not start now. It turns over, but won't fire. I have no spark and no fuel. I replaced fuel pump, ignition coil, spark plug, cdi, voltage rectifier and all the fuses and relays. Could bad stater cause no fuel because I can't hear the fuel pump priming. Any info on where to start looking for problem.
-
