Transmission Fluid Leaked out? Why??

[KTMspeedFreak]

For some reason, out of no where all my tranny flue is leaked out from around one of the seals in tranny where the drive shafts come out.

Buggy was in the garage for few days with no leaks, then randomly all the oil just started dripping out from one of the seal areas?? I didn’t even move the buggy... The only reason I can think as to why it went from zero leaks to major leak is the cold weather here in FL may have shrunk the seals?? Anyone else think this is rather strange? 🤨🧐

Also, antonella’s know where I can order these?

[Travis]

I know sometimes you can buy oil seals by  their dimensions.

can you find any markings or numbers on the trans, or there might even be numbers on the seal.

[Davo]

Just wondering if you sorted your leak. I think I have a similar problem.

[KTMspeedFreak]

Well so yes I discovered the problem. One side axle has about 1/1.5” side to side play. So i can pull the axle right out of the seal with no effort at all. I’m just guessing here but shouldn’t there be something that holds the axle in place to keep it from just sliding off and out of its seal?

[KTMspeedFreak]

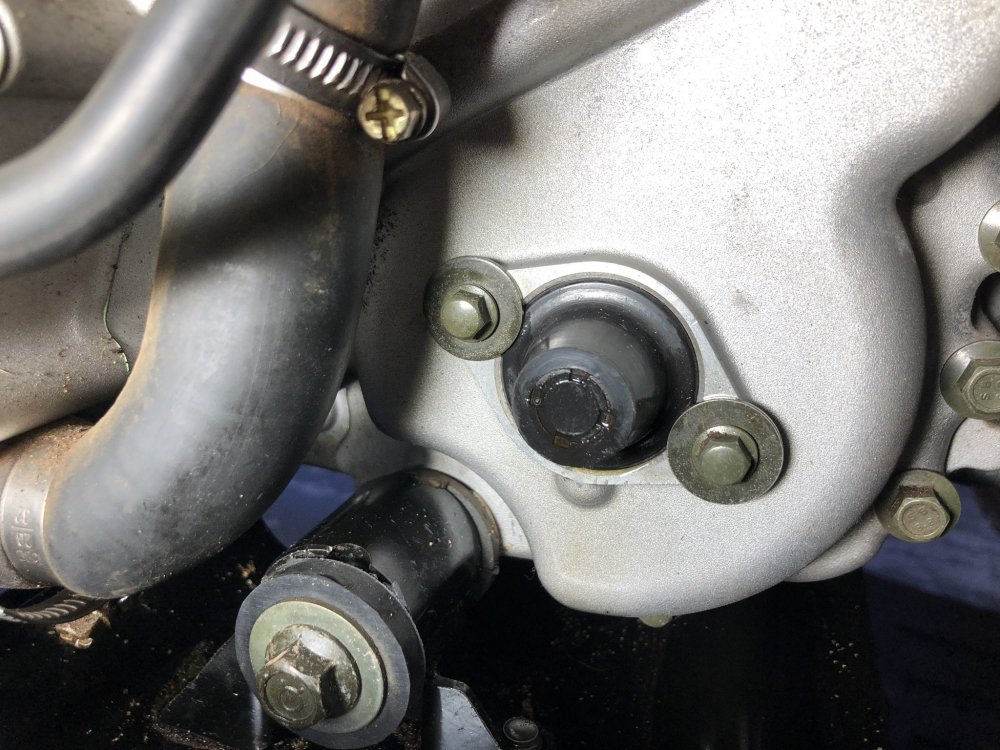

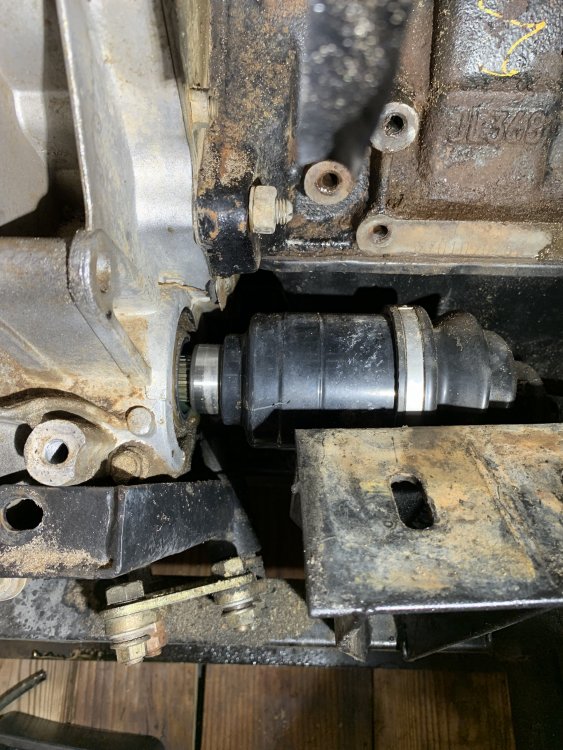

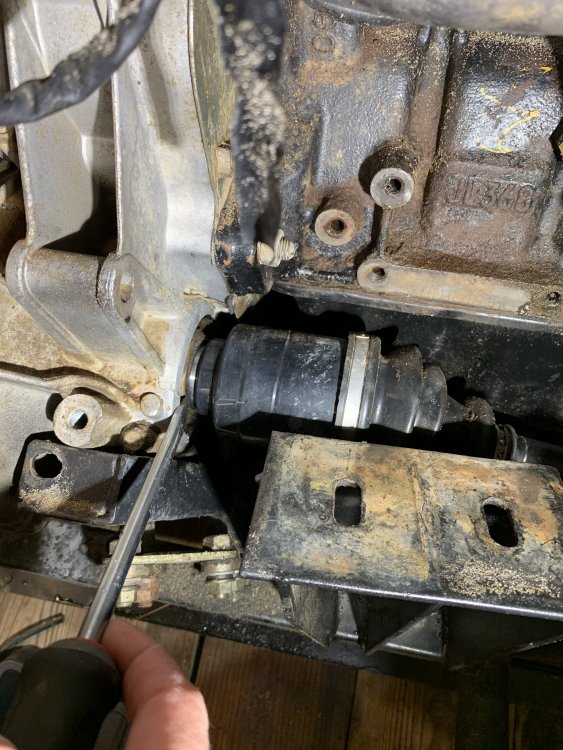

I took some pics... As you can see the right side axle/cup/hub whatever you call it is able to move side by side and when it moves all my fluid dumps out. The other side I cannot get to move whatsoever so I feel like this isn’t suppose to be happening and perhaps a nut/clip or some other restraint is suppose to hold this in place?? anyone know how these work or what might be missing?

[Dan B]

Your description of the end play also leads me to believe there is a snap ring or some kind of retainer that's missing.  Pull that axle out and look for a groove around the shaft that goes into the transmission.  If you go to this website:  http://joyner-usa.com and click on the "Manuals" tab, you'll be presented with a list of some Joyner UTVs.  Pick one closest to  your model.  There isn't too much difference between the year models or even between the Joyner Trooper & Renegade (with the 1100cc engine).  The drive trains are fairly similar.

[KTMspeedFreak]

Thanks! Yes a snap ring is exactly what holds this coupler on the output shaft. Since I didn’t know where to order this ring, I found a piece of rounded steel wire that I cut to shape and size and bent it to fit just so in the groove. So far it has held together after a test run.
