Recommended Posts

Posted

hi. i got a 2017 warrior 700 . fuel injected, suddenly it wont idle, wont start unless i press peddle then it starts with clutch engaged, i can tell  the cicuit aint working for idle maybe fuse. ordered manual from sc autosports, taking its sweet time , dont know were anything is , is there a fuse block or something, anyone familier with the fuel injection on them things

Posted

update to my problem. i found the fuse box. it was in battery compartment under driver seat, its got front and back waterproof covers, front one wasnt seated properly, full of mud and water. corosion starting. took it out blasted with hose, set out in sun all day to bake moisture out, then blasted it with WD. properly in stalled covers, smeared a little red rtv around the seems. hit the pin connectors with WD also. it didnt solve my problem, but im sure it prevented a near future problem. next im gonna  look were throttle cable ties in. stay tuned. TIC.

Posted

well i went through all the pin conecters at the intake/throttle body. everything looked ok. then made it to the ecu controller, pin conectors full of mud and water. 2pins on the ecu green corrotion at the base, bearly touched with tooth pick, they broke off. just ordered new one, from motorcycle doctor. i have to say after speaking to owner on  the phone , i dont feel like im alone in this anymore. really great guy. stay tuned. TIC.

  • Like 1
  • 3 weeks later...
Posted

ok 4th installment of the no go massimo. so it took so long, been working my tale off. then went to maine and ate 12 lobsters. the stuff craig sent me from motorcycle docter was most helpfull, gonna try to attach the service flash. well i got the ecu controller in couple days, that fixed that problem, but still wont start or idle unless you hold gas peddle , then it takes off, yes mine will start in any gear. well i had the intake tube off, were throtle cable attaches it has a cover, i removed to find linkage to the throttle position censor , there was a adjustment screw with a red cap over it, plus the houseing had a black rubber plug in it. my little voice told me to didtch the red cap over the screw head. when i put it back together. so now outta options, i pulled the black plug, stuck a straight slotted scewdriver in and turned clockwise, took almost a half turn, but problem solved. starts right up and idles perfectly. by the way the t.p.s is a cts brand, thats a high end american made company, all the high end guitar makers use them , tone and volume pots. craig told me that the engine came out of a yamaha grizzly.  but most important was my dipstick was marked wrong, not enough oil, clutch damage will happen. so i hopes this helps some other massimo owner. ps i just ordered a massimo mini bike

Oil Level and Stick MTD.jpg

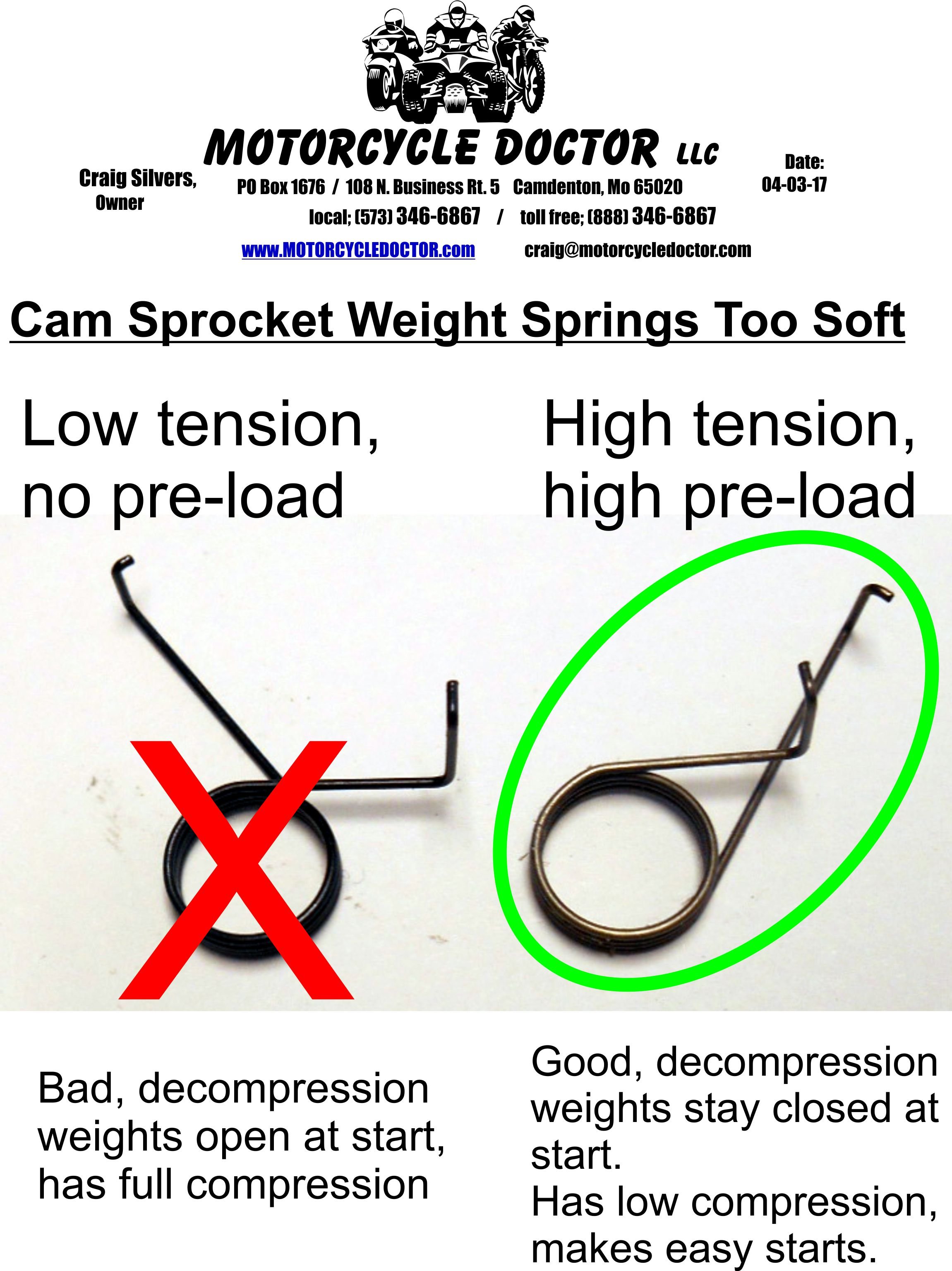

Cam Springs Pic..jpg

Reverse Rev Limit ECU.jpg

from iphone 1 001.JPG

  • Like 1
  • 7 months later...
Posted

I have a 2018 Mossimo ALLI 700. Basically replaced everything. Worked directly with the great team at Motorcycle Doctor and SCAUTO. Replaced everything and for whatever reason the owner got into the UTV and drove it like he stole for 40 miles. Cannot stress enough if a buyer purchases a HISUN, BENNCHE or MOSSIMO off Walmart or Amazon they need strict break in instructions.

Mossimo 700 would start with gas similar to a carburetor style setup. Please follow these steps if this is happening.
1. Do a compression check...If you are under 100psi you have something blown or broke on the main head
2. We had 90 PSI so we started with the valves to see if they are staying open by adjusting them. They were in spec and timing was on mark
3. Head was removed to inspect valve springs. All were tight but one was loose. On the 700 the springs are single stage so it's tricky if you have an older one with dual stage springs because one can be snapped.
4. In our case one of the single stage springs snapped and thank goodness nothing other than a broken spring created the lower compression. Spring replaced and valves readjusted running like a champ. You can feel a broken spring it will spin of feel loose versus all the good springs will be tight and not able to spin.


  • Like 1
  • Alex changed the title to 2017 warrior 700 wont idle

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.
Note: Your post will require moderator approval before it will be visible.

Guest
Reply to this topic...

×   Pasted as rich text.   Paste as plain text instead

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.

  • Similar Topics

    • By Prepper
      I'm working with a 2015 MSU-500.  Basic symptoms are it cranks well, but will not fire.  It has spark, and it has fuel spraying out of the injector (and spraying starting fluid into the throttle body and plug hole makes no difference).  It has compression.  I bought it not running, and no other information was available.  It has 775 miles on it and 127 hours.  It looks to be in very good shape.   Previous owner replaced fuel pump, ECU, coil, plug, and the fuse/relay box that mounts on the firewall, then gave up.
      My questions relate to cam/valve timing, considering the symptoms and diagnostics so far.  My thinking was the woodruff key sheared off and the crank spun, making it out of time.  My question is, by the pictures attached does anyone have an opinion as to the cam/valve timing being correct?  In the crankshaft picture you can see a timing mark visible.  In the camshaft picture I have arrows directed towards what I think are timing marks (which appear to be exactly 180 degrees from one another).  However, the long arrow in what appears to be bolt configuration in line with the piston/rod line.  Here is a puzzling note... in the position you see in the pictures... I have valve lash on both the intake and exhaust.  I think it's at TDC, given the visible crank timing mark and valve lash on both valves.
      Any thoughts ?  Does this appear to be in proper valve time ?  Have I missed anything simple ?  Thanks in advance for your input.


    • By Joe Breaux
      Got a 2017 Massimo MSU500 UTV with thermostat malfunction.. hot light comes on in 4-5 minutes but radiator is ice cold... where exactly is it?  The hose neck on the head has nothing in it.  I was told it was down by oil drain plug.. only thing I see is water pump.. Is in inside pump housing?  Cant find any exploded diagrams that show it.. how to I remove it? any help would be appreciated
    • By Grant
      I recently bought an axis 500 and it’s missing a box or something the plug is L shaped I’ve looked through the wiring diagrams and still can’t figure it out. The plug is located right near the battery housing

    • By A P
      Hi
      I have a 2022 hisun sector eps 550. 30amp fuse is blown for eps. Checked the motor and it’s fine. Opened up the controller and found a bad diode. Dealer wanted 500$ for the controller. Just posting this in case it helps someone. I couldn’t read numbers from the old one so just took a guess and replaced it with a 100v 3amp diode.
    • By clint501
      I recently purchased a Hisun E1 and the other day the charger stopped working properly. The LED on the dash blinks red & green and the light on the side of the charger also blinks red & green. The fan on the charger does not come on like it used to do. There is no error code that I can see. Does anyone have any suggestions to remedy this?
×
×
