Outfitter 400 Front Tow Eye

cliffyk

By cliffyk
in Coleman UTV SxS Forum

 Share

Recommended Posts

cliffyk Rising Star

cliffyk

Posted
Posted

Made this today:

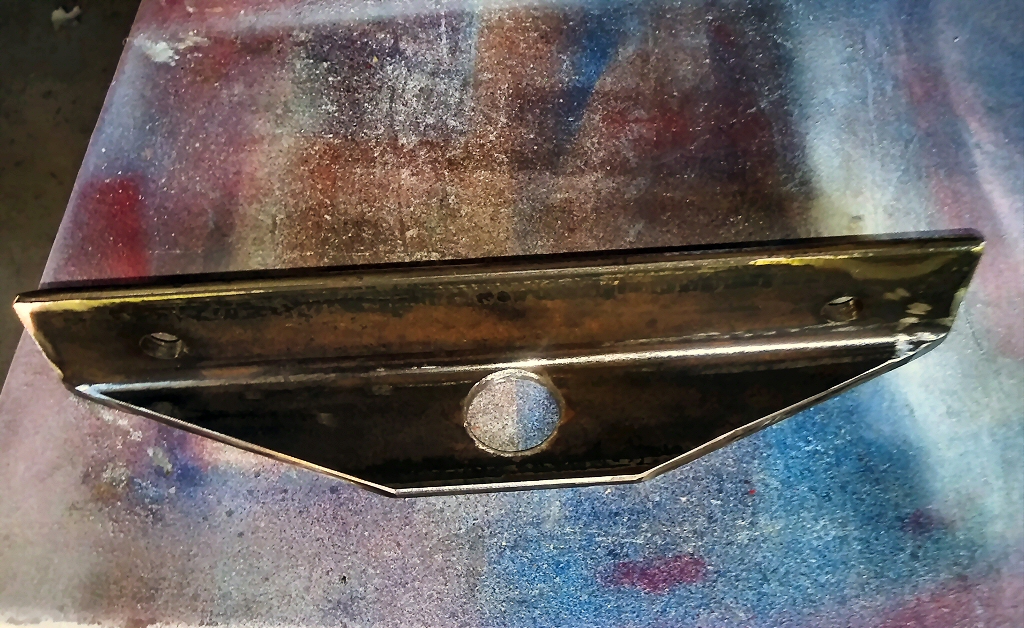

It's a tow-bar/eye for the front end:

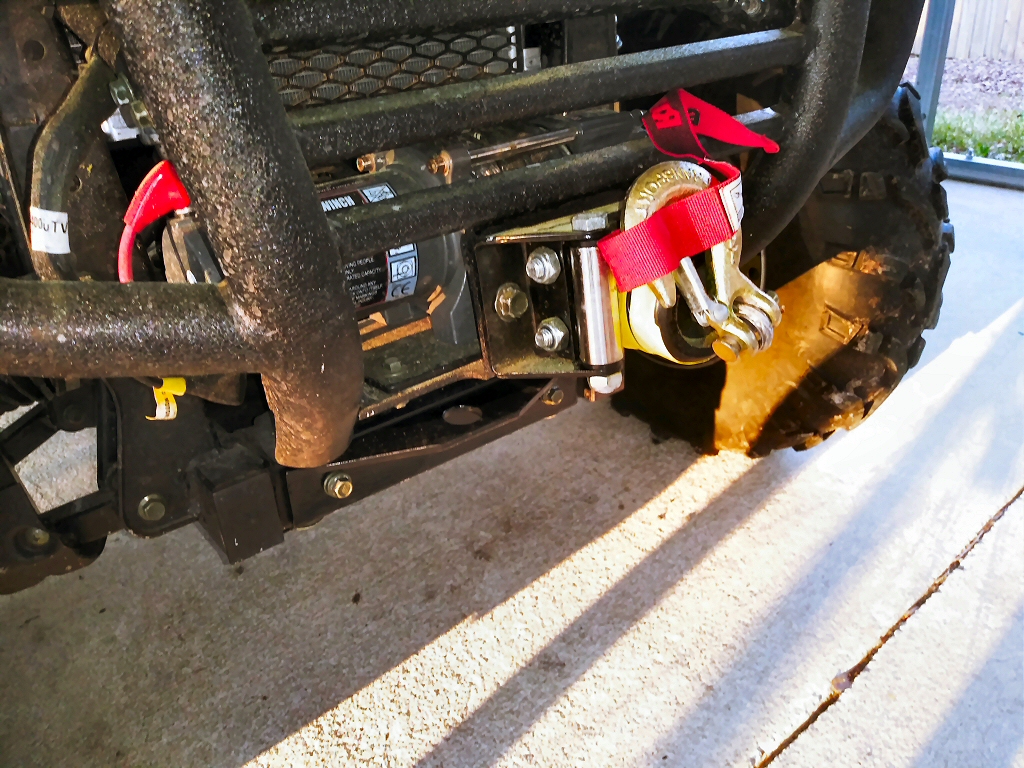

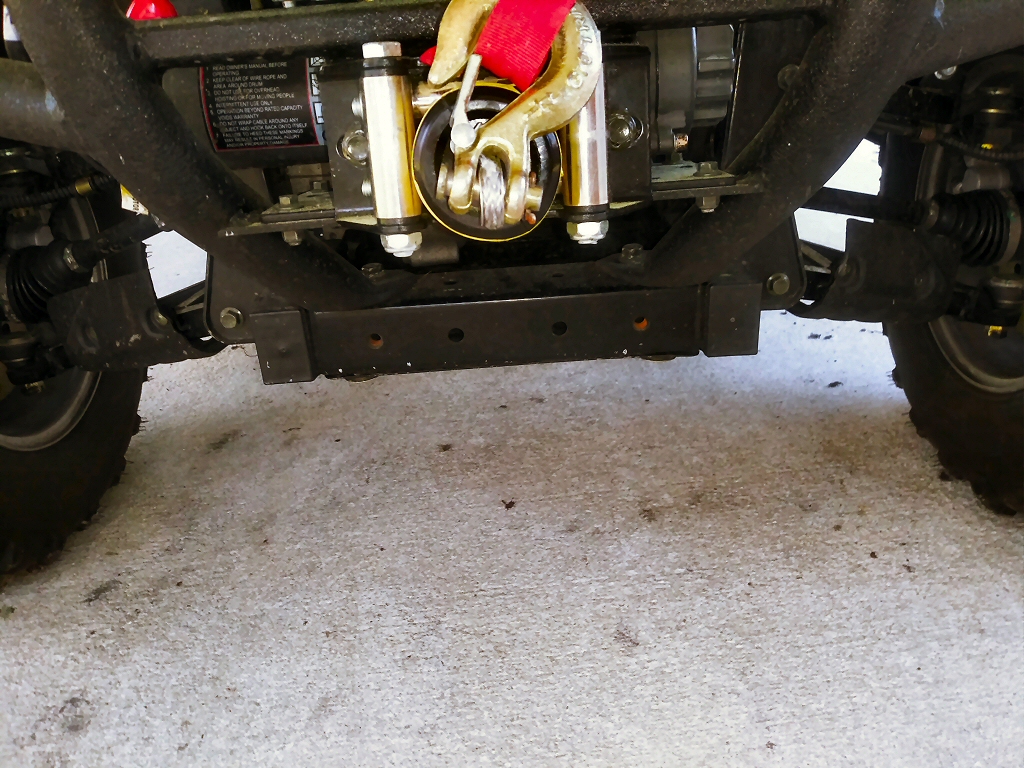

The frame had the perfect place to mount such a thing,--a nice flat-faced robust crossbar with two 10 mm captive nuts:


So I used an 11' long piece of 2"x2"x1/4'hot roll angle iron to make a bolt-on towing eye (also good anchor point if using a snatch block for a double-line pull.

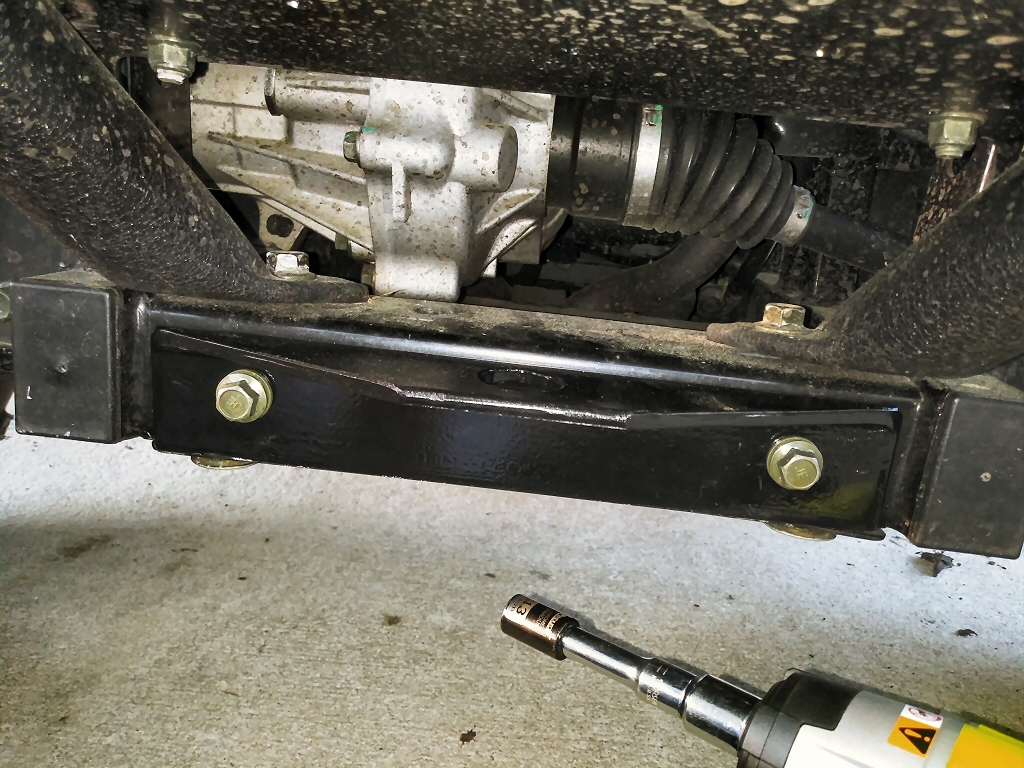

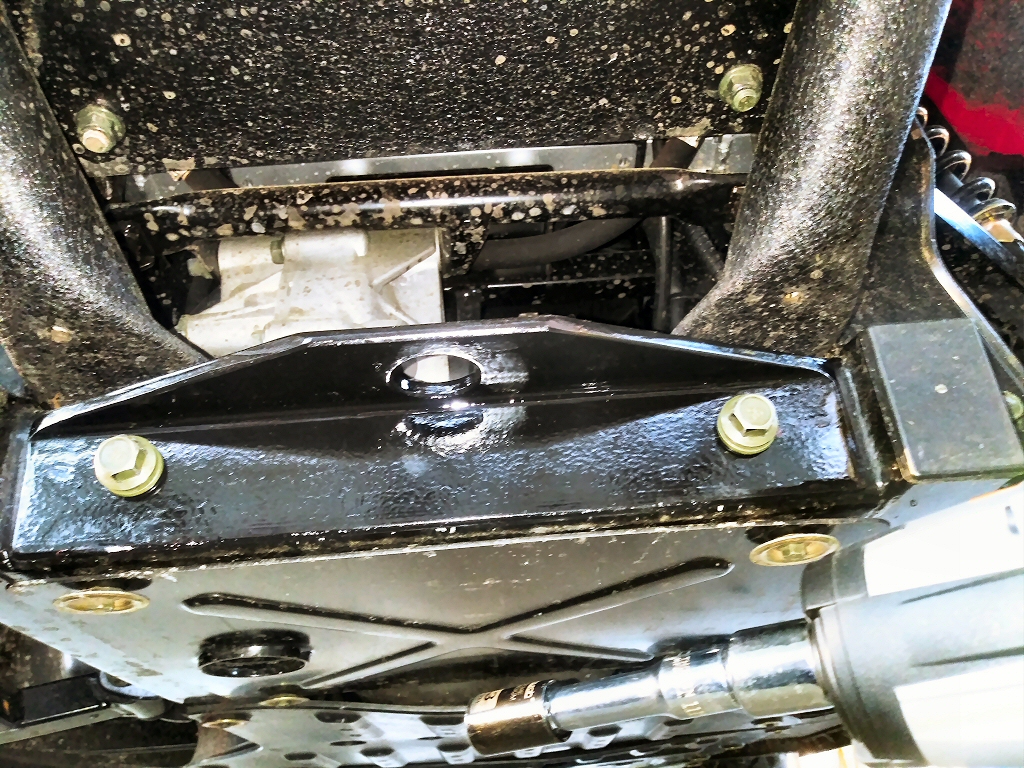

Painted up and installed:







Haven't used it yet but per my calculations it should be good to 12,000 to 15,000 lbs.




  • Like 1
