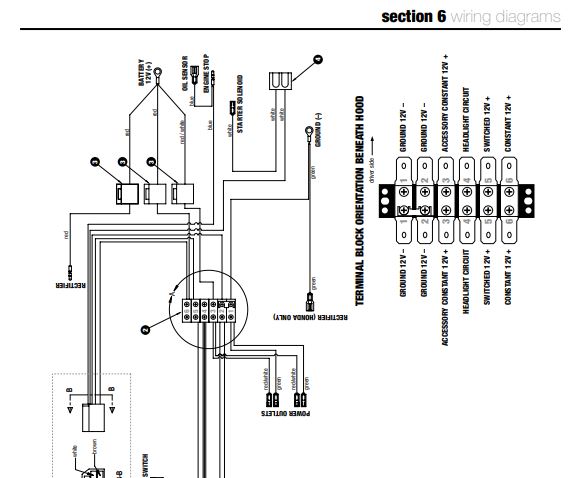

2017 American Landmaster Landstar, Trail Wagon, Crossroad Wiring Diagrams
-
Similar Topics
-
By hisun junk
As I tried to do a conversion with the Yamaha 660 motor, I realized the 660 was never fuel injected so it would not work for the fuel injected hisun motor swap. But the good thing is the hisun 750 motor is a clone of the 660 Yamaha but with the components for the fuel injection (cam/crank position sensor). So that left me with a new rebuilt Yamaha 660 and still a broke 750 hisun motor. I took apart 750 think the timing chain had broke from all that I've heard about these motors. The chain was not broke, but just off cam and crank gears! The chain tensioner was at fault! I've ordered Yamaha 660 replacement parts, chain, two exhaust valves (which got bent when chain came off while motor was spinning) and seals. The piston has 2 little nicks where it had hit valves but no damage otherwise. The head is being redone at the machine shop and I'll be putting it back together in the next couple of weeks. Also I finally tracked down a Service Manual with all the info on the 550/750 Challenger.
-
By Howard Elmore
I have owned mine for a couple years now but newer took off road. How well does it do trail riding m?
-
By Venom
Hi All,
I picked up an old beat up 2010 American Sportworks Bull Dog 300 BD300. I would like to restore her... Does anyone know a good source for parts other than the OEM? I find $130 for brake pads is kind of unreasonable... I also need a steering rack and other things... I took apart the steering rack and it needs a new bearing and oil seal... Of course the OEM only sells the complete rack for over $200.. I found the correct bearing for $6.00. I am having trouble finding the correct oil seal..
Anyone that has info on one of these machines, please chime in... I am used to the ease of finding info on Polaris, Honda, Can Am, Kawasaki, etc....., Info and parts on these seems to be scarce.. Some of the parts on it look like Golf Cart parts as well as some look like Go Kart parts..
-
By Chucky 1
I purchased a new 2023 Landmaster UTV L4 in October of 2023. UTV didn't seem to have as much power of the demo L4 that I drove but figured once it broke in it would be better. After about a week the unit started bogging down backfiring and stopping. Gas fumes really bad, wait a few minutes and it would start up again. Brought it back to the dealer and after keeping it for a few weeks said he couldn't find anything wrong with it. Got it back home and it started acting up again, brought it back to dealer a week later and he said he found couple things that might cause it to do run bad and he was able to replicate the issue but didn't really know what was wrong. Got it back home again after being at dealer for several weeks and the unit started running bad again right away. Brought it back to dealer and he went back and forth with Kohler about possible fixes but just checked somethings and try to swap a few parts but still runs bad. I called Landmaster HQ to speak with someone about a refund and was told that was handled at the dealer level. Dealer called Landmaster and they told him they didn't do refunds or exchanges especially with units that had problems. The dealer is now trying to get a new engine to but I have not heard anything as of yet. I did file complaint with Better Business Bureau and they accepted my claim and reached out to Landmaster. The National Service Manager called me and said the he had been contacted by the BBB about the complaint and he would look into it. I told him that I would just like to have my down payment of $2,000.00 returned and never mind the over $1,000.00 I have paid in notes for a UTV that I cannot even ride on without hoping it gets me around the neighborhood. I have found out that the 2024 Landmaster UTVs will have Vanguard engines due to issues with the Kohler engines. Very disappointed in what is "Proudly Made in the USA" and the way Landmaster has treated this disabled veteran!
-
By Reynolds Rocket
I have a 2017 Intimidator XD4 800cc 4x4. It will run great and then it's like it goes into safe mode and only runs on 1 cylinder. It's not fouling out the plug when it happens. Some times when I stop and restart it, it works fine. First I thought it was a spark issue, then a fuel issue, but I feel like it's a short in the wiring some place.
-
