T-Boss foot pedal gap.

Guest

By Guest
in Massimo UTV SxS Forum

 Share

Recommended Posts

Guest

Guest

Posted
Posted

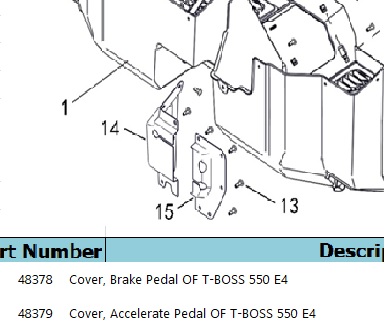

I have a Linhai 550 T-Boss which is the European version of the Massimo. I know there are slight differences but nothing mechanical or essentially body-wise.  Having had a cab with heating installed it became apparent that the gaps surrounding the pedals negated the floor level heating, the gaps are large. Looking for a solution I found out that the next generation of T-Boss have parts fitted to block these gaps. I should imagine that without these plastic fitting that any water puddles or worse would wet the feet & floor. The parts are available as an aftermarket purchase, so if the gap is a problem on the 1995622649_LinhaipedalParts.jpg.0b25e82bb9c2b3d5935c1c0c02b4445e.jpgMassimo then here are the Linhai part numbers.
